Cable Tray

Perforated Cable Tray

U-LI design of perforated type cable tray is compact and fast to is install. The combination of straight cable tray with the other accessories having a unique integrated coupling system. The offers in wide range of options and multiple choices in tray profile to suit to the construction design and with load rated to NEMA VE-1. We also manufacture cable tray to comply with recognized international standards.

Steel Cable Tray

Material:

  1. Hot roll mild steel to JIS G 3131 SPHC, JIS G 3101 SS400
  2. Cold roll mild steel to JIS G 3141 SPCC
  3. Corten steel EN 10025 S 355 JOW
  4. Pre-Galvanized Steel BS 2989
  5. Electro Galvanized to BS 1449 Pt.1: 1983
  6. Stainless Steel AISI grade 304, 316 & 316L
  7. Aluminium

Finishing:

  1. Hot Dipped Galvanized to BS EN ISO 1461 or ASTM A123
  2. Epoxy Powder Coated to ASTM D 1654, BS 6920
  3. Polyester Powder Coated to ASTM D 1654, BS 6920

Standard:

  1. NEMA VE-1
  2. MS IEC 61537: 2007s

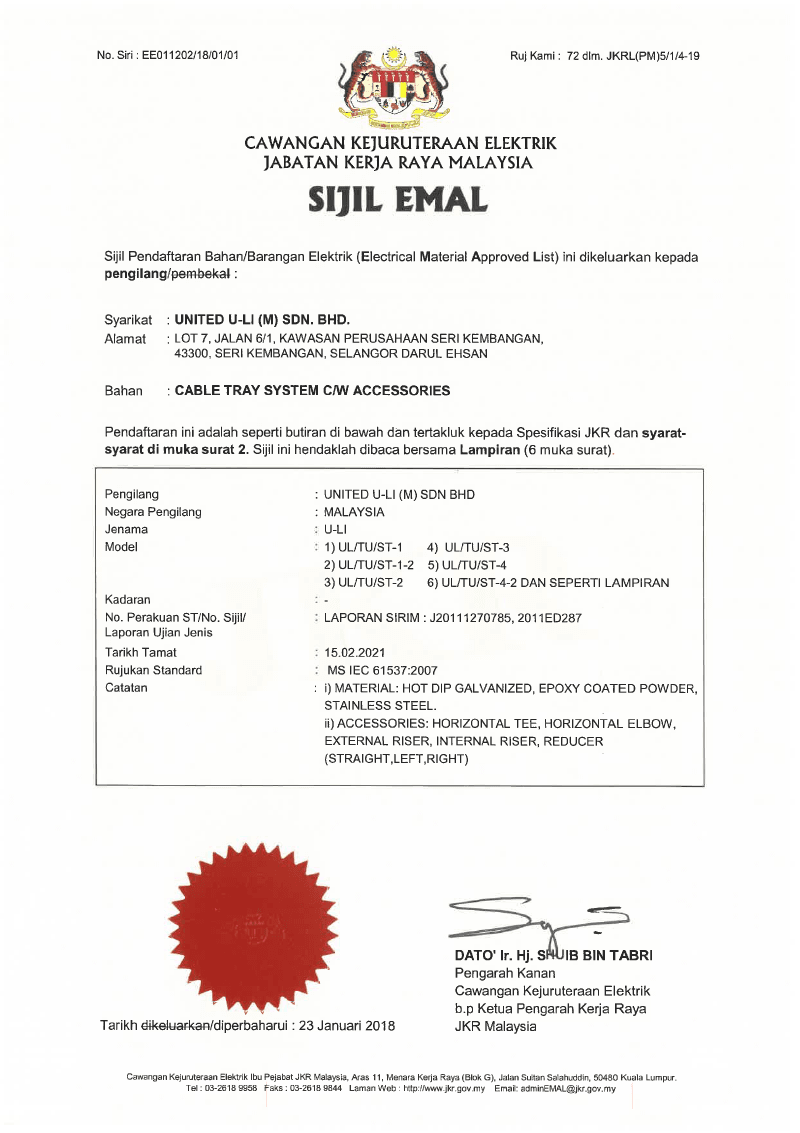

Certificate:

Interested in a product catalogue?

  • Product details
  • Details technical specifications
  • Layout designs
  • Product images
  • Additional accessories
